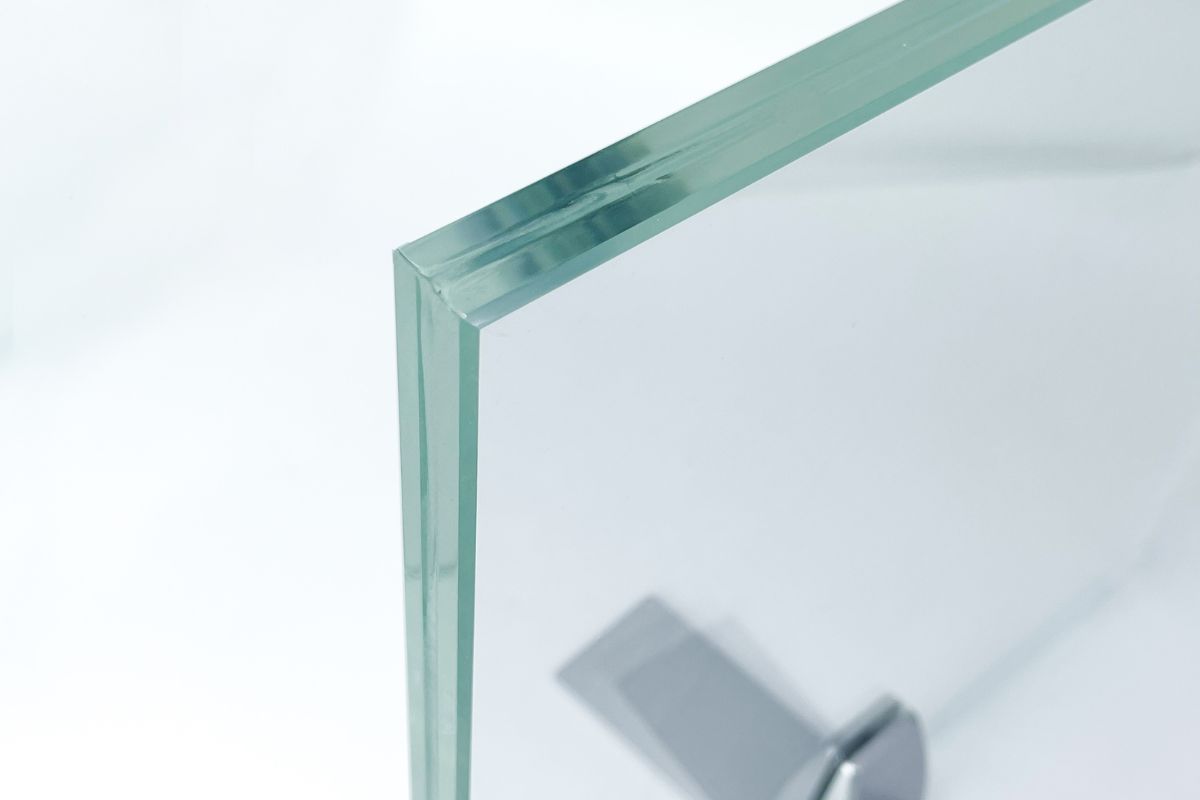

Polyvinyl butyral (PVB) film serves as a cornerstone polymer interlayer across the safety glass, optoelectronics, and solar energy industries. Renowned for its optical clarity, robust impact absorption, and excellent substrate adhesion, this thermoplastic resin bridges the gap between mechanical durability and optical performance. Synthesized via the acetalization of polyvinyl alcohol (PVA) with butyraldehyde, PVB's amphiphilic molecular architecture—featuring both hydrophilic hydroxyl groups and hydrophobic acetal chains—enables its deployment in demanding automotive, architectural, and electronic environments.
1. Molecular Architecture and Chemical Composition
The performance profile of a PVB film depends directly on its underlying polymer chain composition. During synthesis, the acid-catalyzed reaction yields a random copolymer comprising three distinct functional segments:
Adjusting the molecular weight distribution (typically targeting a polydispersity index of 1.8–2.5) and controlling the spatial distribution of these sequences allows manufacturers to engineer specific material behaviors. For instance, low-temperature, emulsifier-assisted synthesis can freeze non-equilibrium sequence distributions to optimize sound-dampening performance.
2. Advanced Manufacturing and Film Fabrication
Acetalization Chemistry Optimization
Modern production methodologies focus heavily on preventing thermal degradation and discoloration. Utilizing advanced organic catalysts, such as hydroxy butyric acid, functions as both a catalyst and a pH regulator. This effectively minimizes the material's yellow index (YI) and limits post-heating aldehyde generation to under 100 ppm after 5 hours at 130°C. Standard processing controls require a strict reaction window: temperatures maintained between 40–70°C, a pH of 2.5–4.0, and an excess butyraldehyde-to-PVA molar ratio of 1.2–2.0:1. The resulting resin is thoroughly washed, neutralized, and compounded with 20–40 phr of high-efficiency plasticizers (such as 3GO).
Film Formation Technologies
Two distinct methodologies dictate commercial PVB production depending on the end-use requirements:
Solution Casting: Preferred for premium optical displays and semiconductor pellicles. The plasticized PVB is dissolved in polar solvents (e.g., ethanol/methanol blends or dimethylformamide) to create a 15–25 wt% resin casting solution. Multi-layer slot-die coating onto a sacrificial carrier followed by controlled drying (60–120°C) produces films with excellent optical metrics: haze values under 0.5%, birefringence beneath 5 nm, and surface roughness (Ra) below 0.1 μm.
Melt Extrusion: The primary path for large-scale production of safety glass interlayers. The plasticized compound is processed through twin-screw extruders operating at 150–200°C. The melt is cast through a flat die onto texturing/cooling rolls (40–70°C) to deliberately induce a controlled surface roughness (Rz of 30–55 μm). This precise topography is critical; it creates micro-channels that allow complete air evacuation during glass lamination, preventing trapped bubble defects.
3. Physical, Mechanical, and Optical Performance Profiles
